C&I ESS Commercial & Industrial Off-Grid & Backup

Outdoor Liquid-Cooled Cabinet ESS (215 / 233 / 261 kWh)

Name: Outdoor Liquid-Cooled Cabinet ESS (215 / 233 / 261 kWh)
Brand: Solhon

All-in-one outdoor cabinet ESS with PACK-level liquid cooling, 215–261.3 kWh per unit and up to 10 units in parallel for 2.6 MWh — built for peak-valley arbitrage, demand charge management and backup power.

Get a Quote

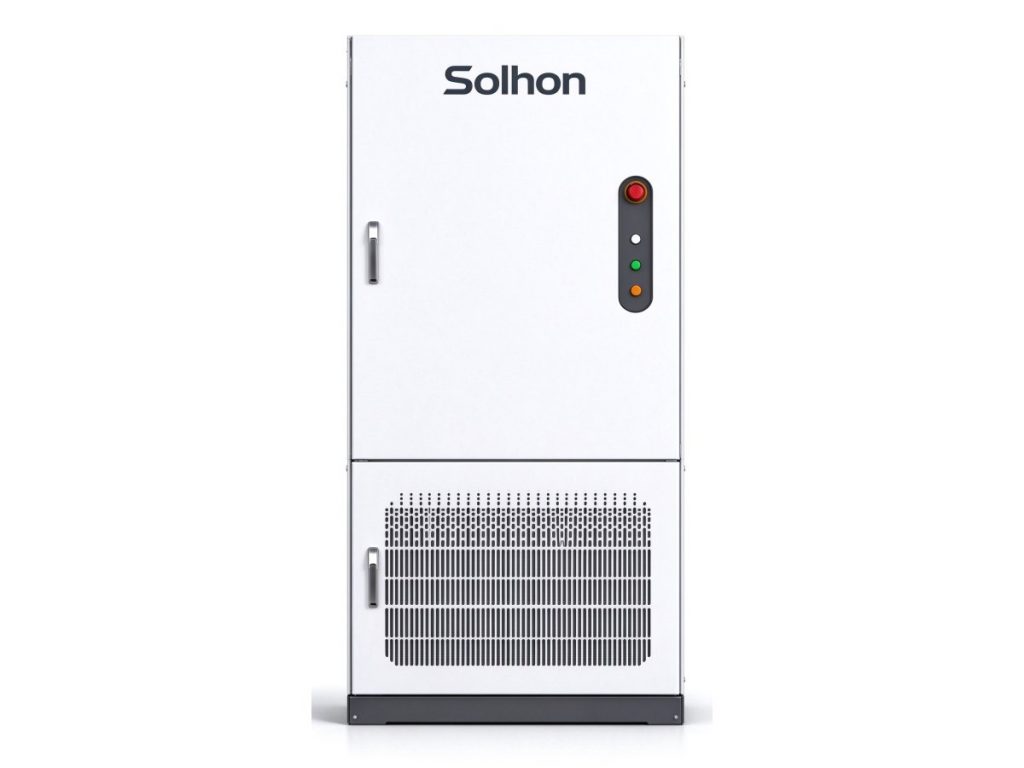

Outdoor Liquid-Cooled Cabinet ESS (215 / 233 / 261 kWh) — detail 1

Highlights

Key Features

All-in-one outdoor cabinet with PACK-level liquid cooling and high system integration
Flexible expansion: up to 10 units in parallel, maximum capacity scalable to 2.6 MWh
PACK-level active safety monitoring and early warning with intelligent fire suppression and temperature control
Engine cloud platform for remote and local monitoring and intelligent cloud-based O&M
Business models: peak-valley arbitrage, output smoothing, demand charge management, dynamic capacity expansion, demand response, spot trading and backup power
Applications: business parks, office buildings, shopping malls, distributed PV, solar-storage-charging-inspection stations, transformer-area microgrids, data centers, island microgrids, villages and enterprises

Technical

Specifications

Product NameSH-CL1-215/233/261
Cell TypeLithium Iron Phosphate (LiFePO4, LFP)
Cell Specification280 Ah / 314 Ah
Number of Battery Modules5 in series
Total Rated Capacity215 kWh / 233 kWh / 261.3 kWh
System Voltage Range728–936 V DC
System Weight2500 kg
System Dimensions (W×H×D)965 × 2200 × 1350 mm
Design Life10 years
Cycle Life8,000 cycles (100% charge/discharge, 70% capacity retention, at 25°C)
Ingress Protection RatingIP65
Cooling MethodLiquid cooling
Fire Suppression SystemAerosol fire extinguishers installed in both the PACKs and the cabinet interior
Charging Temperature0°C to +50°C
Discharging Temperature-20°C to +50°C
Storage Temperature-10°C to +45°C
Operating Humidity5%–95% relative humidity
Operating Altitude2,000 m (inverter derating above 2,000 m)
