Cable para Almacenamiento de Energía (1×35.0 mm²)

BOS & Accessories Commercial & Industrial

Energy Storage Cable (1×35.0 mm²)

Name: Energy Storage Cable (1×35.0 mm²)
Brand: Solhon

High-voltage energy storage cable with 1×35.0 mm² copper conductor, XLPO insulation and sheath — rated 1500 V and -40°C to +125°C, with 90° elbow connector and flange socket options.

Get a Quote

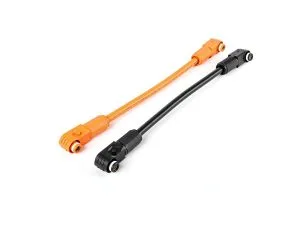

Cable para Almacenamiento de Energía (1×35.0 mm²) — detail 1

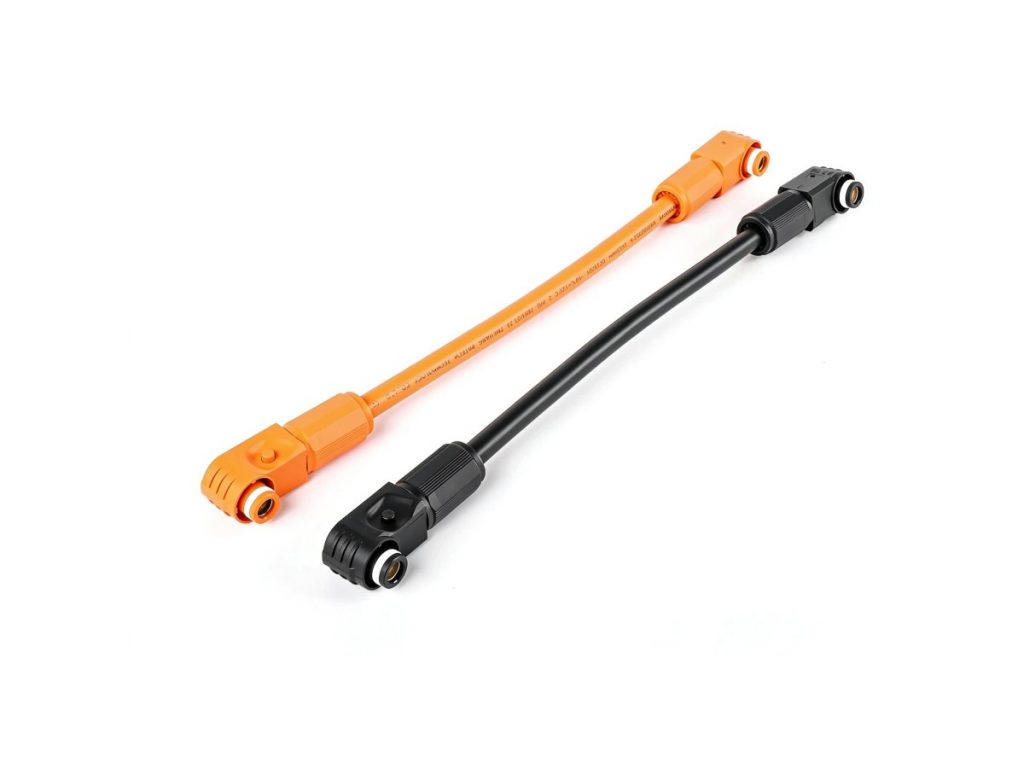

Cable para Almacenamiento de Energía (1×35.0 mm²) — detail 2

Highlights

Key Features

High-voltage energy storage cable, 1×35.0 mm² copper conductor
XLPO insulation and sheath, rated 1500 V and -40°C to +125°C

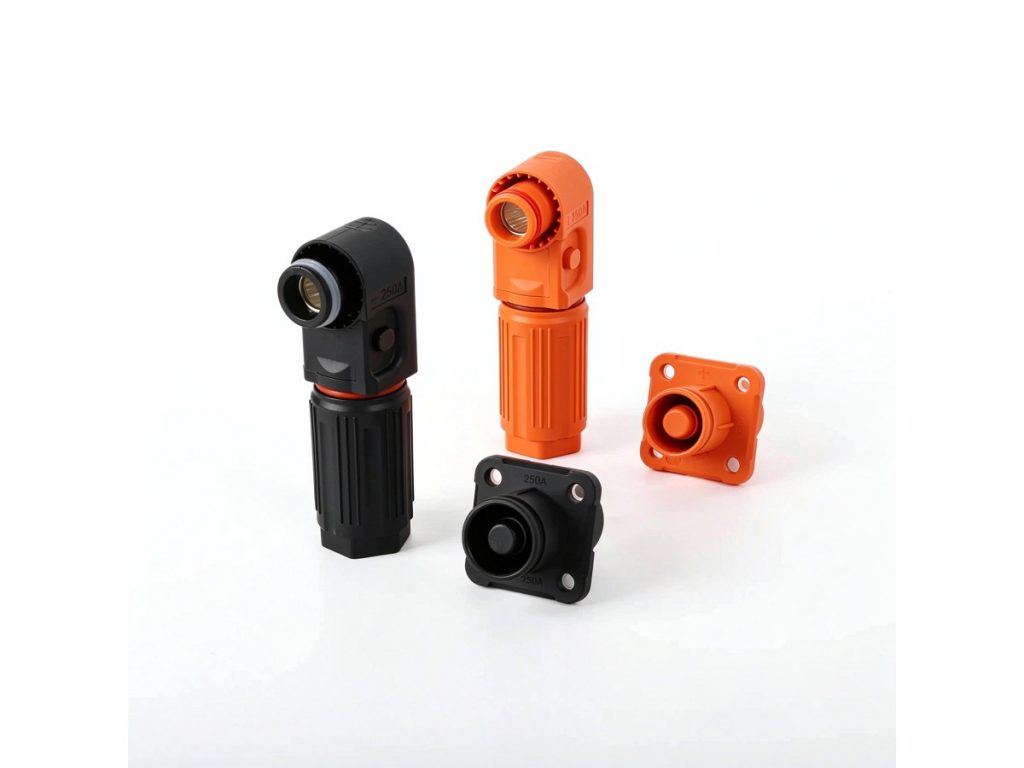

Black / orange colour coding, with 90° elbow connector and flange socket options
For automotive wiring harness, construction, industry, PV power generation and power stations
25-year theoretical service life

Technical

Specifications

Product NameEnergy Storage Cable
Wire Specification1×35.0 mm²
Conductor MaterialCopper
Insulation MaterialXLPO
Sheath MaterialXLPO
Rated Voltage1500 V
Rated Temperature-40°C ~ 125°C
ColorBlack / Orange
TypeHigh voltage
ApplicationAutomotive wiring harness, construction, industry, PV power generation, power station
Theoretical Service Life25 years
OriginZhejiang, China
Sales UnitSingle product
