Ground PV Mounting System (Tilt & Vertical)
Ground-mounted PV structures for residential, farmland and PV fence projects — anodized AL 6005-T5 aluminum alloy and Q235B carbon steel, rated to 60 m/s wind and 1.4 kN/m² snow load.
Highlights
Key Features

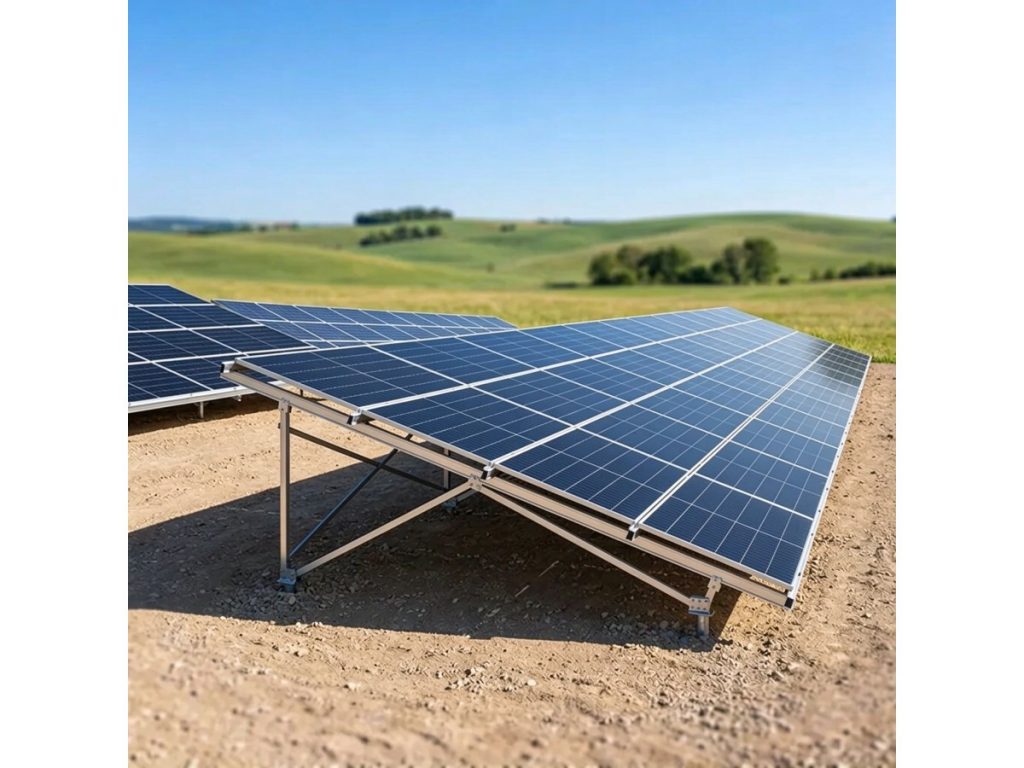

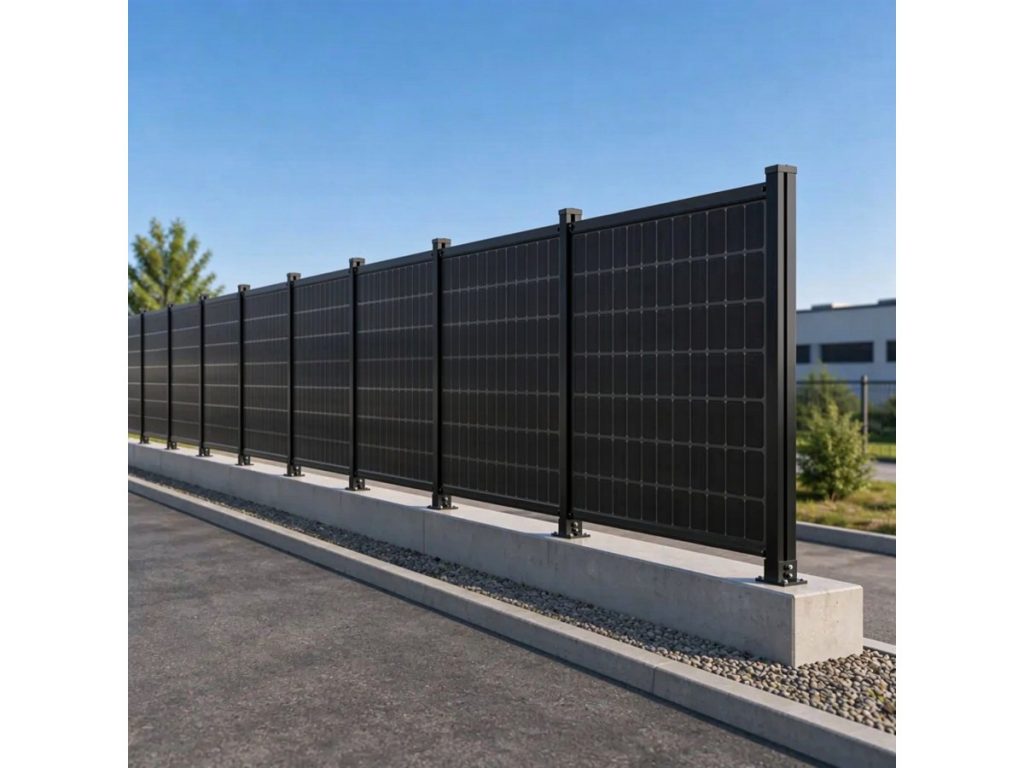

- Tilt and vertical ground mounting for residential, farmland and PV fence projects
- High-strength AL 6005-T5 aluminum alloy and Q235B carbon steel with anodized finish
- Works with framed or frameless modules in portrait or landscape orientation
- Max wind speed 60 m/s (216 km/h), max snow load 1.4 kN/m²
- 10-year warranty with 25-year service life
- CE / ISO 9001 certified, designed to JISC8955-2017
Technical
Specifications
- Product NameSolar Ground Mounting System
- MaterialAL 6005-T5 high-strength aluminum alloy & Q235B carbon steel
- Surface TreatmentAnodized
- CertificateCE / ISO 9001
- StandardJISC8955-2017 Photovoltaic Array Structure Design Guide
- Max Snow Load1.4 kN/m²
- Max Wind Speed60 m/s (216 km/h)
- Applicable ModulesFramed or frameless
- Module OrientationPortrait or landscape
- Warranty10-year warranty, 25-year service life
- OriginChina
- Sales UnitSingle product
Certifications: Available upon request under NDA. Request Compliance Documents →
