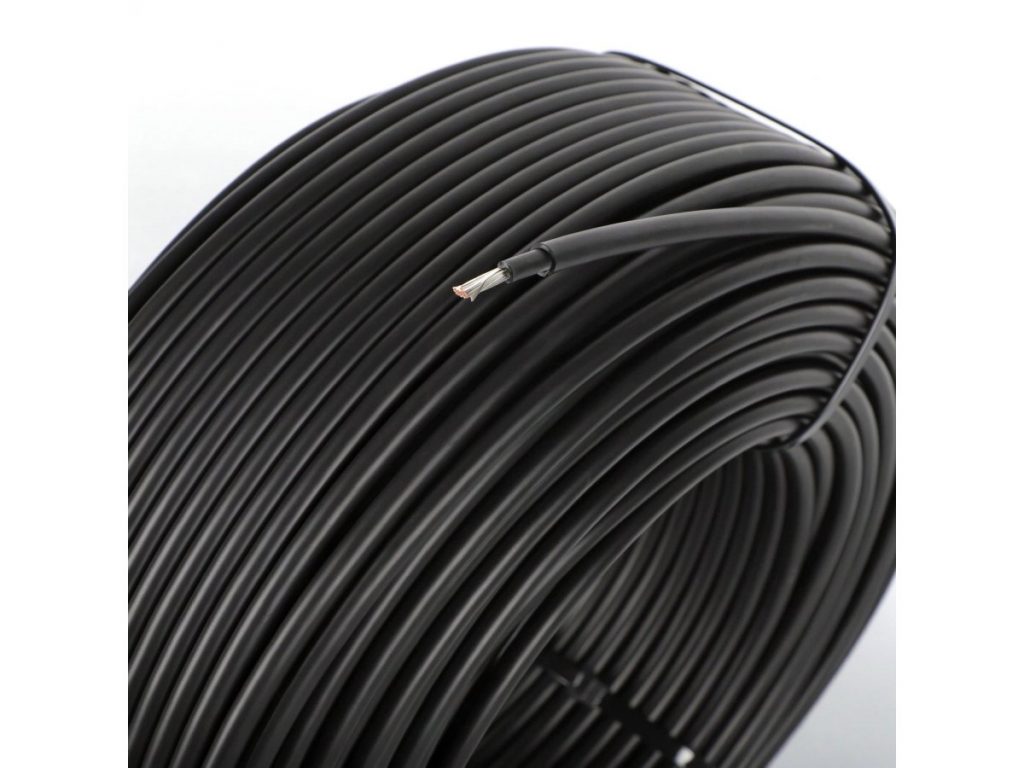

PV Cable (H1Z2Z2-K 1×2.5 mm²)
H1Z2Z2-K solar cable with oxygen-free tinned copper conductor, XLPE insulation and XLPO sheath — rated AC 1.0 kV / DC 1.5 kV for power station and distributed PV wiring.
Highlights
Key Features

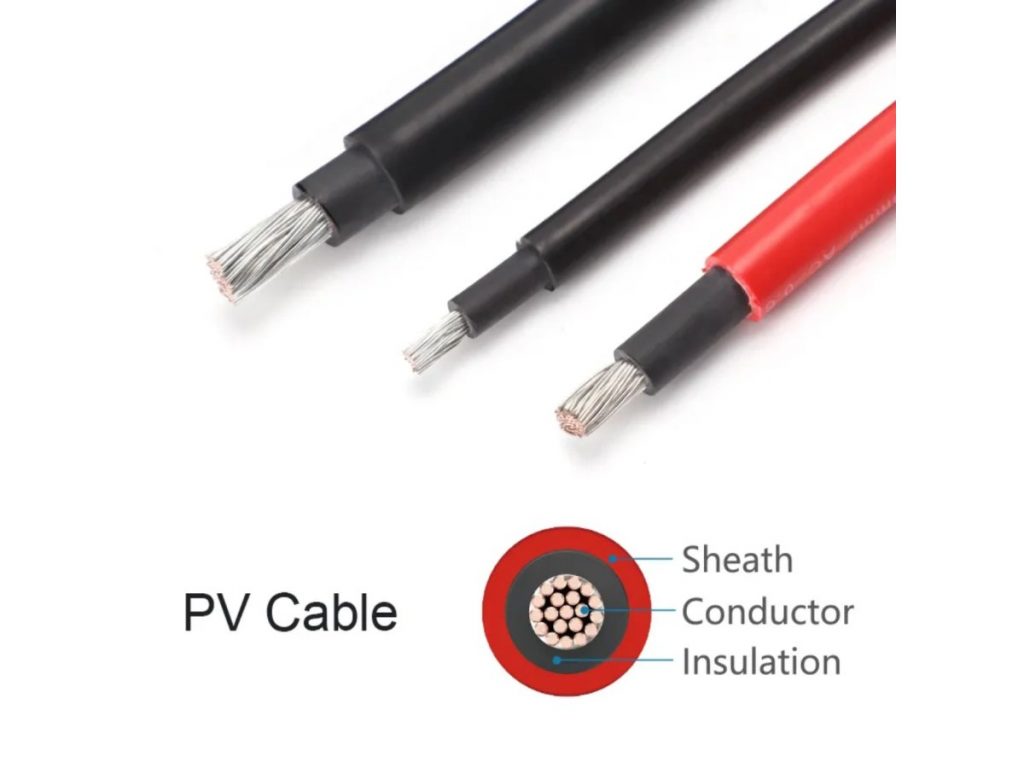

- H1Z2Z2-K solar cable, 1×2.5 mm², with oxygen-free tinned copper conductor
- XLPE insulation and XLPO sheath, rated AC 1.0 kV / DC 1.5 kV (1500 V)
- Operating temperature -40°C to +90°C, resistant to ozone, acid and alkali
- Tested to EN 50395, EN 60068-2-78, EN 60811-404 and EN 60811-403
- Suited to power station and distributed PV wiring
Technical
Specifications
- Product NamePV Cable (Solar Cable)
- ModelH1Z2Z2-K 1×2.5 mm²
- Wire Specification1×2.5 mm²
- Conductor MaterialOxygen-free tinned copper wire
- Insulation MaterialXLPE
- Sheath MaterialXLPO
- Rated VoltageAC 1.0 kV / DC 1.5 kV (1500 V)
- Voltage Test (Completed Cable)AC 6.5 kV / DC 15 kV, 5 min
- Operating Temperature-40°C ~ +90°C
- ApplicationPower station
- TypeLow voltage
- Pressure Test at High TemperatureEN 50395
- Damp Heat TestEN 60068-2-78
- Acid and Alkali ResistanceEN 60811-404
- Ozone ResistanceEN 60811-403
- OriginChina
- Sales UnitSingle product
Certifications: Available upon request under NDA. Request Compliance Documents →
