Solar PV Water Pump System
Solar water pumping system with 1.5 kW DC and 4 kW AC/DC submersible pump options, MPPT controllers and dry-run protection.
Product Overview
System Tiers

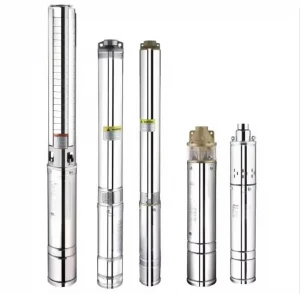

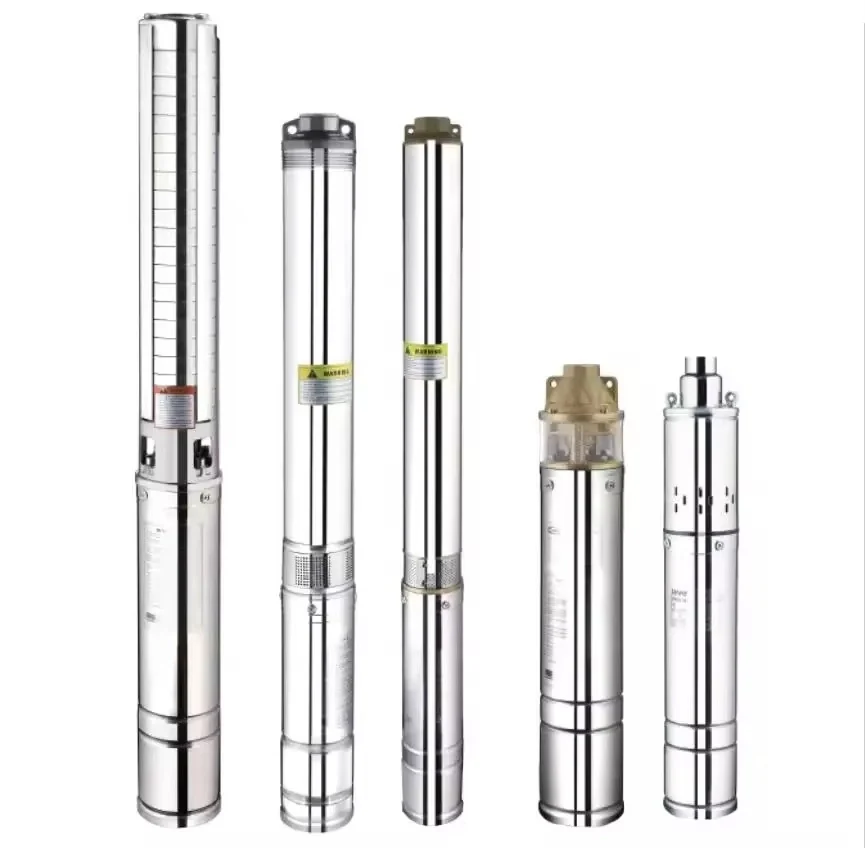

Tier A — 1.5 kW DC Submersible Pump
Power: 1,500 W
Voltage: DC 110 V (optimal input 110–150 V)
Max Flow Rate: 23 m³/h
Max Head: 25 m
Water Outlet: 2"
Motor Type: DC Brushless Permanent Magnet Synchronous
Built-in Functions: MPPT tracking · Dry-run protection (auto-shutdown when no water, auto-restart after 30 minutes)
Tier B — 4 kW AC/DC Deep Well Submersible Pump
Power: 4,000 W
Voltage: AC 350–460 V / DC 480–750 V
Max Flow Rate: 70 m³/h
Max Head: 40 m
Water Outlet: 4"
Max Well Diameter: 4"
Solar Panel Configuration: Open circuit voltage < 800 V · Panel power ≥ 5,000 W

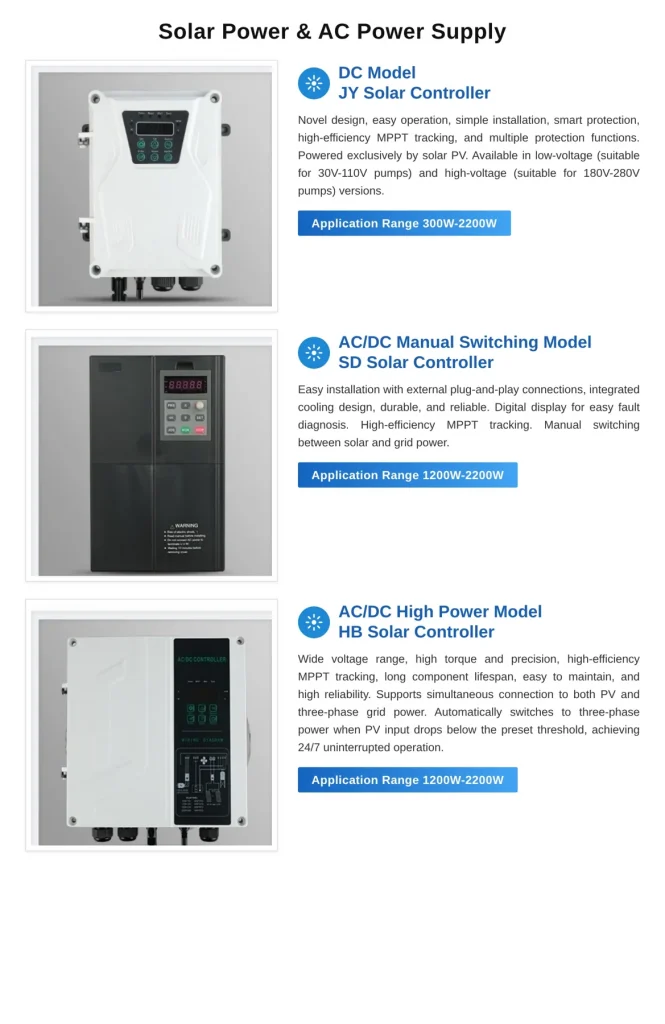

MPPT Solar Controller Series
DC Model — JY Solar Controller: Novel design, easy operation, simple installation, smart protection, high-efficiency MPPT tracking, and multiple protection functions. Powered exclusively by solar PV. Available in low-voltage (suitable for 30 V–110 V pumps) and high-voltage (suitable for 180 V–280 V pumps) versions. Application range: 300 W–2,200 W.
AC/DC Manual Switching Model — SD Solar Controller: Easy installation with external plug-and-play connections, integrated cooling design, durable and reliable. Digital display for easy fault diagnosis. High-efficiency MPPT tracking. Manual switching between solar and grid power. Application range: 1,200 W–2,200 W.
AC/DC High Power Model — HB Solar Controller: Wide voltage range, high torque and precision, high-efficiency MPPT tracking, long component lifespan, easy to maintain, and high reliability. Supports simultaneous connection to both PV and three-phase grid power. Automatically switches to three-phase power when PV input drops below the preset threshold, achieving 24/7 uninterrupted operation. Application range: 1,200 W–2,200 W.
Applications
Agricultural irrigation and farm water supply
Livestock watering and rural off-grid water systems
Residential well water extraction in remote areas
Garden and landscape irrigation
Commercial solar-powered water transfer and drainage
